AS 350 B3 50A, 28VDC Aux Power Outlet
The certified solution to power your special equipment up to 50Amps, 28VDC
Swiss Helicopter Engineering has developed and certified in cooperation with Swiss Helicopter Maintenance (www.shm-ag.ch) a 50Amps power outlet system. The system is available in two configurations: one with a single 50Amps auxiliary power outlet, the other one with two separate connectors for a total of 50Amps. The connectors are located below the passenger bench on the RH side.
You can easily activate the auxiliary outlet(s) by one of the original spare buttons in the cockpit console

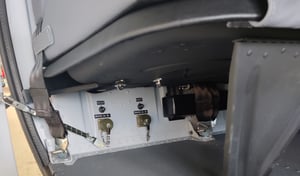

Connectors are located below the passenger bench on the RH side.
The circuits are located in the baggage compartment and protected by dedicated sheet metal
Typically used to power TV cameras, Lidars and other special mission equipment
Dual configuration available
Single 50Amps auxiliary power outlet, or two separate connectors for a total of 50Amps

System activation
You can easily activate the auxiliary outlet(s) by one of the original spare buttons in the cockpit console



The main features at a glance
Engineered from pilots experience Possible choice between two different configurations available Protected by dedicated CBs
|
Approved on AS 350 B3 / H125 Availability of the full hardware kit, ready to be installed! EASA DOA 21J.730 approved Minor Change
|
The 50Amps Auxiliary Power Outlet for H125/AS 350 B3 is ready for installation
We have certified the 50Amps Auxiliary Power Outlet system, and it is ready to be installed in your H125/AS 350 B3.
If you are planning to develop such a solution for a different type, do not hesitate to contact us and we will provide a customized certification plan.
H125/AS 350 B3
Ask for a quotation! Approval recognised by FAA, TCCA and ANAC via bilateral agreement. Approval can be validated to other civil aviation authority and extended to other aircraft on request.50Amps, 28VDC
