AS 350 B3 50A, 28VDC Aux Power Outlet

Airbus AS350/H125 B3

EASA part 21J

The certified solution to power your special equipment up to 50Amps, 28VDC

Swiss Helicopter Engineering has developed and certified in cooperation with Swiss Helicopter Maintenance (www.shm-ag.ch) a 50Amps power outlet system. The system is available in two configurations: one with a single 50Amps auxiliary power outlet, the other one with two separate connectors for a total of 50Amps. The connectors are located below the passenger bench on the RH side.

Power available For auxiliary equipment up to 50Amps, 28 VDC. Two available configurations: the first with a single 50A connector and the second one with two separate connectors for a total of 50A.

System activation

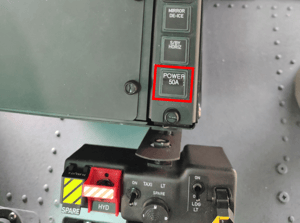

You can easily activate the auxiliary outlet(s) by one of the original spare buttons in the cockpit console

Design

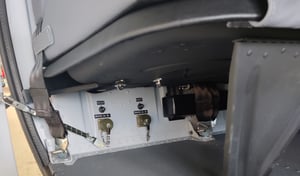

Connectors are located below the passenger bench on the RH side.

The circuits are located in the baggage compartment and protected by dedicated sheet metal

Typical usages

Typically used to power TV cameras, Lidars and other special mission equipment

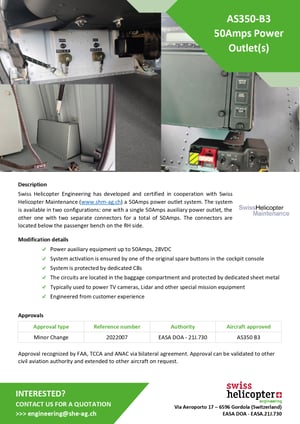

Download the flyer

Ready to improve capabilities on Airbus AS350.

Download

The main features at a glance

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. Lorem ipsum dolor sit amet, consetetur sadipscing elitr. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Engineered from pilots experience

Possible choice between two different configurations available

Protected by dedicated CBs

Approved on AS 350 B3 / H125

Availability of the full hardware kit, ready to be installed!

EASA DOA 21J.730 approved Minor Change

AVAILABILITY AND PRICES

The 50Amps Auxiliary Power Outlet for H125/AS 350 B3 is ready for installation

We have certified the 50Amps Auxiliary Power Outlet system, and it is ready to be installed in your H125/AS 350 B3.
If you are planning to develop such a solution for a different type, do not hesitate to contact us and we will provide a customized certification plan.

H125/AS 350 B3

Ask for a quotation! Approval recognised by FAA, TCCA and ANAC via bilateral agreement. Approval can be validated to other civil aviation authority and extended to other aircraft on request.

Dual configuration available

Full hardware kit can be supplied

50Amps, 28VDC

Different type?

Let's study together! We will find a solution together.

Describe you needs

Send us your aircraft records

Receive a certification plan

Let's study together!

Would you like to buy this product or do you have any questions?

Contact us without obligation. We are here to answer your questions, adapt the offer or customise the product to your needs.
