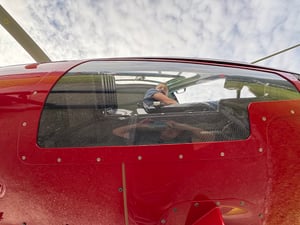

Maximum visibility

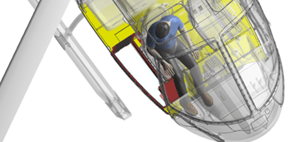

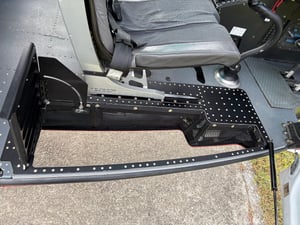

The system key feature is the optimization of visibility through the reduction of the Right-Hand floor edge dimensions, horizontally and vertically; this maintaining its structural integrity. The edge can still be stepped without limitations.
Simple integration
The system is easily installed in less than one week; it is compatible with the original TC Holder door, the high visibility door and, optionally, with Swiss Helicopter Engineering Bubble Window STC for furtherly increased visibility.
Installation is compatible with all AS350 B3 models and variants, including all type of seats (SICMA 159 and SICMA 198) and seat rails.
The system can be also installed as a retrofit on helicopters already equipped with the most common floor windows and it includes all the needed provisions and instructions to relocate systems in the area.

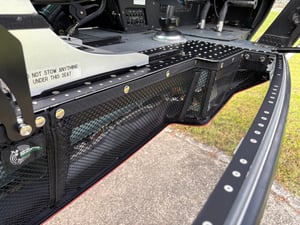

Close out protection
The system features a close out protection to prevent any object to jam flight controls and systems below the floor.
It is made out in textile to guarantee flexibility in the installation, a quick removal/installation for maintenance and to guarantee ventilation to the door for moisture formation prevention.

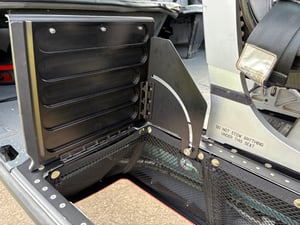

Foldable cover

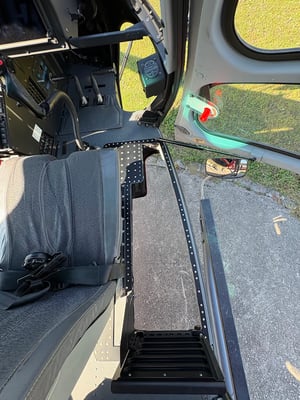

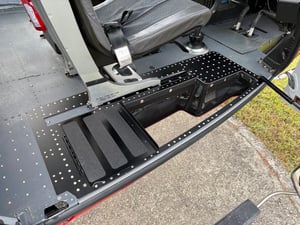

The system features a foldable cover for the AFT part of the floor window to step on for passengers and crew members and to provide a barrier for loose items preventing them to fall into the window and jeopardize operation.
It is designed in a way that the pilot can move it very easily with a single hand from his seat.
Perfect for sling load, firefighting...
The system is designed for optimizing sling load and firefighting operations.
...and for passengers transport!
With a simple pilot gesture, passengers flights are not affected by the installation!
AVAILABILITY AND PRICES
The RH Cockpit Floor Window STC kit for H125/AS 350 B3 is available!
Kit orders are available for orders and could be installed directly by maintenance organisations or with support of Swiss Helicopter Engineering if requested.
