AS 350 B2 / B3 FLI repeater device mounts

Airbus AS350/H125 Series

EASA part 21J

The certified solution to allow utility operators to hold the device they use for the FLI Repeater App.

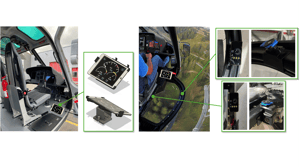

Swiss Helicopter Engineering offers multiple mounts for devices using FLI Repeater App to satisfy most needs and many different A/C configurations.

Tablet or smartphone The range of available mounts allow the installation of most tablets and smartphones

Compatible with pilot RH and LH configuration of H125 FLI repeater mounts are approved and can be installed in both H125 RH and LH pilot configurations

Dedicated mounts also for MPVK Two dedicated solutions are available to integrate smartphone to your Maximum Pilot View Kit without compromising the pilot visibility

Engineered in collaboration with AKV Inc. The installation has been designed closely with AKV Inc. (www.akvinc.com), developers of FLI repeater system

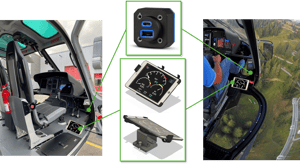

Floor mount

This configuration allows the mount of both smartphone and tablets and it is located on the RH or LH flight deck floor. This installation is compatible with both DART vertical reference floor windows and Maximum Pilot View Kit.

USB chargers installation optionally available.

The change is approved allowing to fly only with small fixed provisions installed permanently while removing the bulky part without tools. This results in a minimal footprint when the FLI repeater is not used.

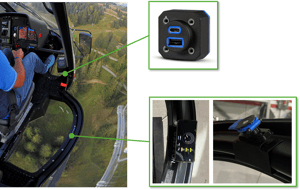

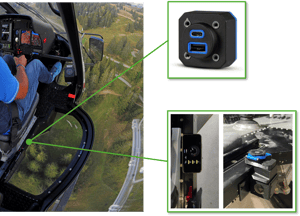

MPVK floor window mount

This configuration allows the mount of smartphones and it is located in the MPVK floor window frame next to the pilot seat.

Removable parts of the mount allow for the installation without conflicts of MPVK lid.

USB chargers installation optionally available.

Download the flyer

Ready to apply your FLI repeater mount

Download

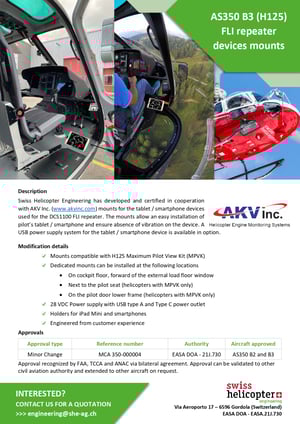

SHE-SLS-A010-F_C - AS350 - FLI repeater device mounts_page-0001

The main features at a glance

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. Lorem ipsum dolor sit amet, consetetur sadipscing elitr. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Approved Minor Change number 350-000004

Ease of installation and removal without special tools

Compatible with RH and LH H125 pilot configurations

Approved on AS 350 B3 / B2 (VEMD)

Smartphones and Tablets are supported in different configurations

Compatible, but not limited, to MPVK and DART vertical reference floor windows

AVAILABILITY AND PRICES

The FLI repeater device mounts for H125/AS 350 B3 / B2 (VEMD) is ready for installation

We have certified the FLI repeater mounts, and they are ready to be installed in your H125/AS 350 B3 / B2 (VEMD).
If you are planning to develop such a solution for a different type, do not hesitate to contact us and we will provide a customized certification plan.

H125/AS 350 B3 / B2 (VEMD)

Ask for a quotation! Approval recognised by FAA, TCCA and ANAC via bilateral agreement. Approval can be validated to other civil aviation authority and extended to other aircraft on request.

Vibration free

Three configurations available

Compatibility with MPVK an

Different type?

Let's study together! We will find a solution together.

Describe you needs

Send us your aircraft records

Receive a certification plan

Let's study together!

Would you like to buy this product or do you have any questions?

Contact us without obligation. We are here to answer your questions, adapt the offer or customise the product to your needs.
